Lapierre XR brake pad compatibility guide

Find brake pads for your Lapierre XR.

Find brake pads for the verified Lapierre XR builds below, covering model years 2019, 2027. Choose the exact model and year, then compare both caliper markings before buying. Each photograph and brake specification is linked to the matching official Lapierre product page or archive catalogue. Specifications can differ between builds and years.

7model builds

7verified fitments

2019–2027years covered

Compatibility last checked 19 October 2026. Brake specifications are verified against manufacturer and published technical sources.

Official Lapierre photograph ↗

Jump to model year

XR 2027 XR 2019

Mountain bikes

XR 2027

5 fitments

2027

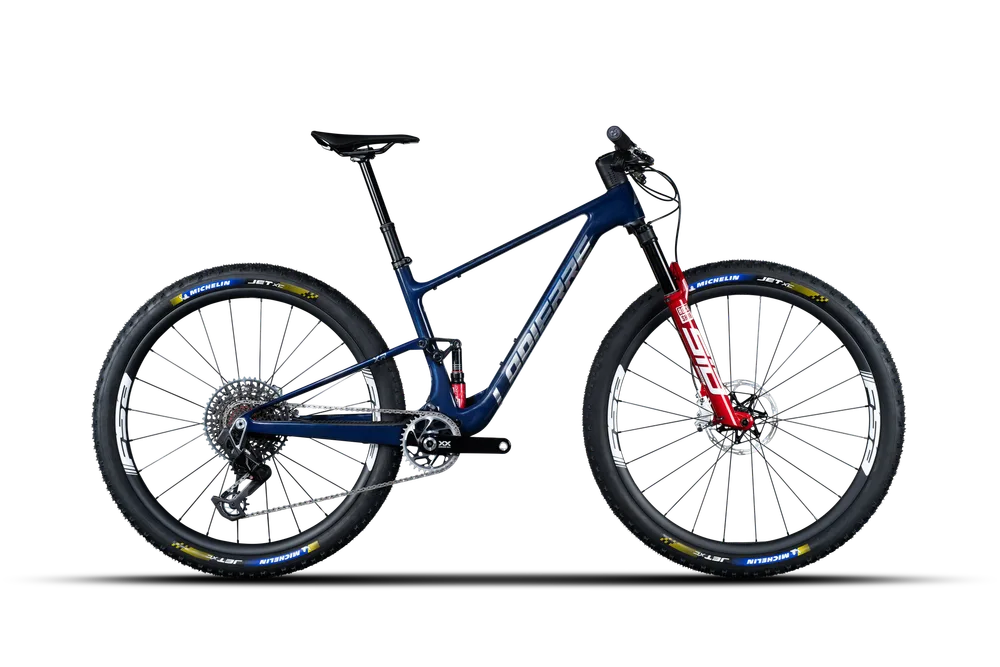

XR 10.9

Verified fitment

Front brake: SRAM Hydraulic Disc brake DB Motive V2 Ultimate, 4 pistons, org.pad, 180 mm
Rear brake: SRAM Hydraulic Disc brake DB Motive V2 Ultimate, 4 pistons, org.pad, 160 mm

Front and rear pads: SRAM DB8 / Code / Motive / G2 RE / Guide RE Brake Pads

Fitted front: SRAM Hydraulic Disc brake DB Motive V2 Ultimate, 4 pistons, org.pad, 180 mm. Fitted rear: SRAM Hydraulic Disc brake DB Motive V2 Ultimate, 4 pistons, org.pad, 160 mm. This opens the verified Gorilla Brakes collection so you can choose your compound.

2027

XR 5.9

Verified fitment

Front and rear brake: Shimano Hydraulic Disc brake BR-MT420, 4 pistons, resin pad, 180 mm

Front and rear pads: Shimano XT / SLX / XTR / Deore 4-Piston Brake Pads

Fitted front and rear: Shimano Hydraulic Disc brake BR-MT420, 4 pistons, resin pad, 180 mm. This opens the verified Gorilla Brakes collection so you can choose your compound.

2027

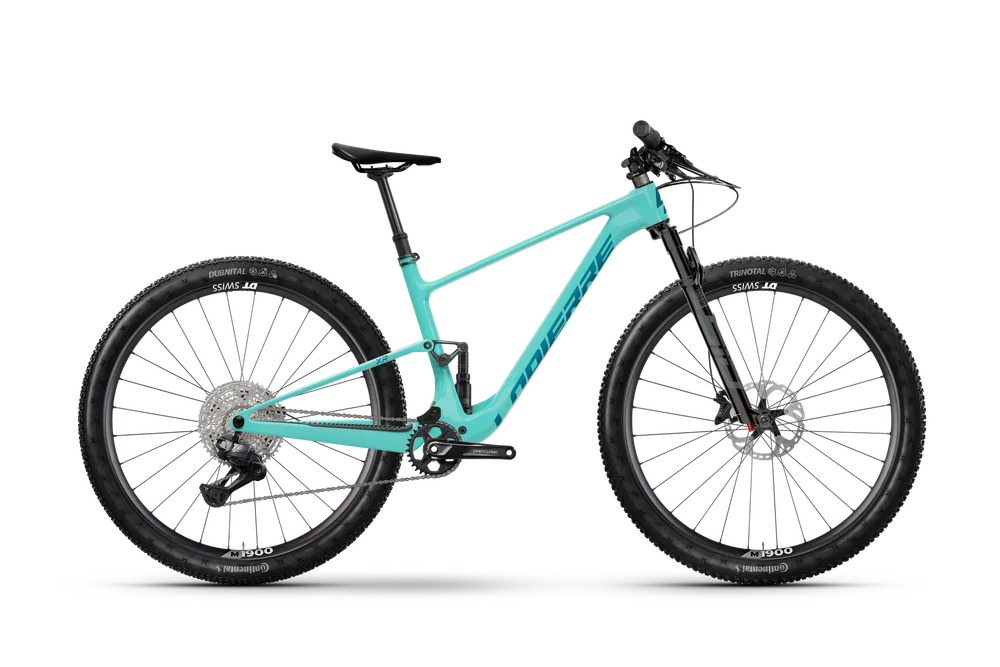

XR 6.9

Verified fitment

Front brake: Shimano Hydraulic Disc brake Deore BR-M6220, 4 pistons, resin pad, 180 mm
Rear brake: Shimano Hydraulic Disc brake Deore BR-M6220, 4 pistons, resin pad, 160 mm

Front and rear pads: Shimano XT / SLX / XTR / Deore 4-Piston Brake Pads

Fitted front: Shimano Hydraulic Disc brake Deore BR-M6220, 4 pistons, resin pad, 180 mm. Fitted rear: Shimano Hydraulic Disc brake Deore BR-M6220, 4 pistons, resin pad, 160 mm. This opens the verified Gorilla Brakes collection so you can choose your compound.

2027

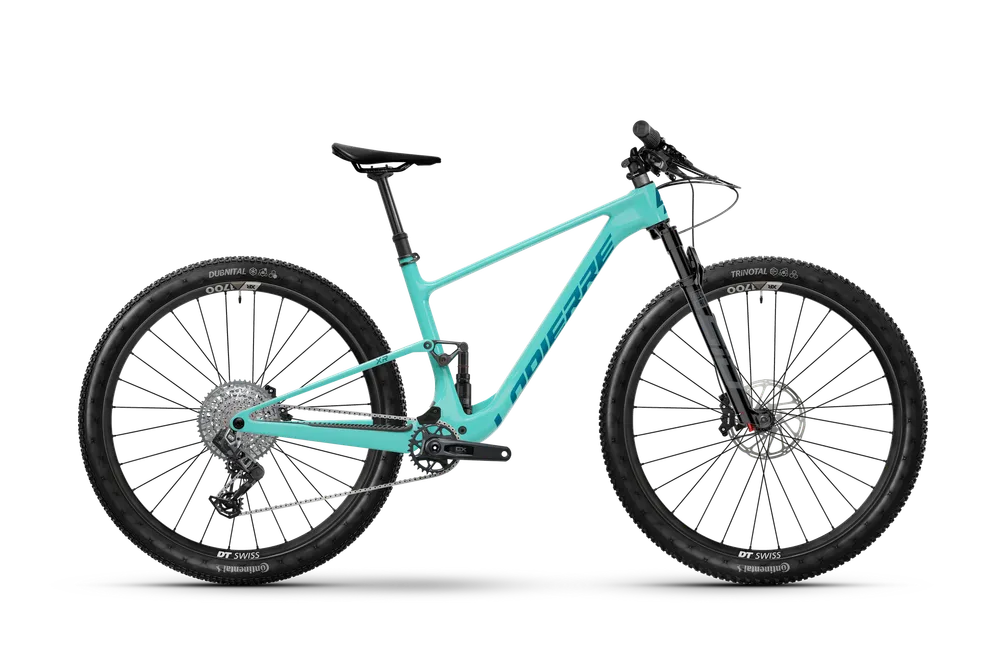

XR 7.9

Verified fitment

Front brake: SRAM Hydraulic Disc brake DB Motive V2 Bronze, 4 pistons, org.pad, 180 mm
Rear brake: SRAM Hydraulic Disc brake DB Motive V2 Bronze, 4 pistons, org.pad, 160 mm

Front and rear pads: SRAM DB8 / Code / Motive / G2 RE / Guide RE Brake Pads

Fitted front: SRAM Hydraulic Disc brake DB Motive V2 Bronze, 4 pistons, org.pad, 180 mm. Fitted rear: SRAM Hydraulic Disc brake DB Motive V2 Bronze, 4 pistons, org.pad, 160 mm. This opens the verified Gorilla Brakes collection so you can choose your compound.

2027

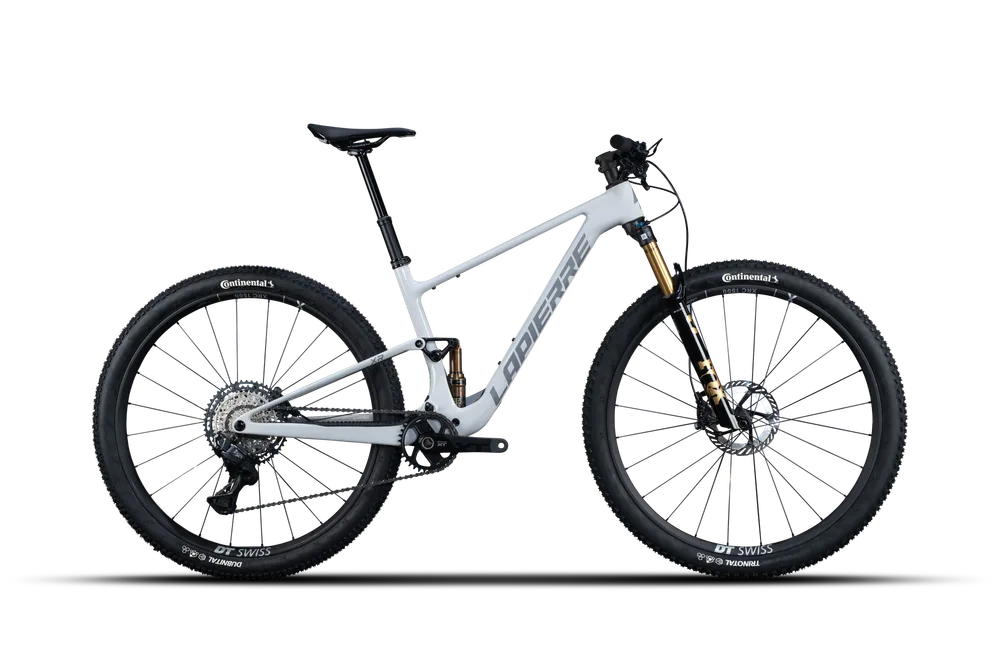

XR 8.9

Verified fitment

Front and rear brake: Shimano Hydraulic Disc brake Deore XT BR-M8220, 4 pistons, resin pad, 180 mm

Front and rear pads: Shimano XT / SLX / XTR / Deore 4-Piston Brake Pads

Fitted front and rear: Shimano Hydraulic Disc brake Deore XT BR-M8220, 4 pistons, resin pad, 180 mm. This opens the verified Gorilla Brakes collection so you can choose your compound.

Mountain bikes

XR 2019

2 fitments

2019

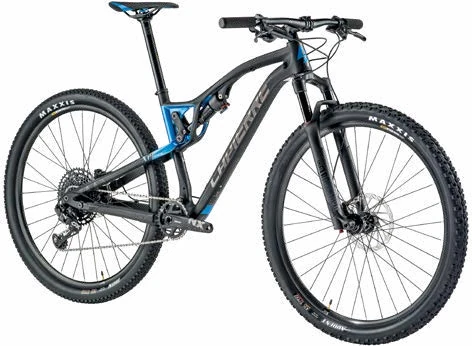

XR SL 629

Verified fitment

Front and rear brake: SRAM Level Base

Front and rear pads: SRAM Level / RED / Force / Rival / Apex Brake Pads

Fitted front and rear: SRAM Level Base. This opens the verified Gorilla Brakes collection so you can choose your compound.

2019

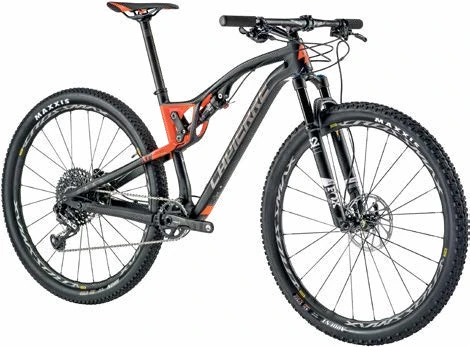

XR SL 729

Verified fitment

Front and rear brake: SRAM Level TL

Front and rear pads: SRAM Level / RED / Force / Rival / Apex Brake Pads

Fitted front and rear: SRAM Level TL. This opens the verified Gorilla Brakes collection so you can choose your compound.

Lapierre XR brake pad questions

Before you order.

Which brake pads fit my Lapierre XR?

Select the exact model and year on this page. The linked official specification identifies the original front and rear brakes; each card links to the corresponding pad collection. The family name or rotor diameter alone does not determine pad shape.

Do two-piston and four-piston brakes use the same pads?

Not necessarily. Pad shape depends on the exact caliper, not just the piston count. SRAM Guide/G2 and Guide RE, for example, use different pad families. Use the collection linked to your exact build and check front and rear separately.

Does the photograph identify my exact model year?

Each photo is linked to the official source for the model and year stated on its card. Current product photos and archive catalogue photos are kept separate. A photograph does not prove the brakes still fitted to a used or modified bike, and a model year does not imply current stock.

What if my bike has replacement brakes?

Match the calipers actually fitted to your bike. The manufacturer specification records the original build only. Check front and rear separately and use Find by brake if either has been replaced.

Can the front and rear of a Lapierre XR use different pads?

Yes. Some builds use different calipers or pad shapes at the front and rear, so check both mappings on the exact bike card.

Need help checking your XR?

Send us the model, year and a photo of the caliper.
